Adding Ductwork to a Finished Basement

If you are finishing a basement in Halifax, the heating question usually arrives late — after the framing is up, sometimes after the drywall. And it usually arrives in the form people expect: can we run a couple of vents down here?

Almost always, yes. Running the duct is the straightforward half of this job.

The half that decides whether you end up happy is the one nobody asks about: does your system have anything left to give? A furnace or air handler moves a fixed volume of air. New registers in the basement do not create more of it — they divide the same air more ways. Get that part wrong and you have not heated the basement so much as moved the problem upstairs.

So this guide is in the order the job should actually happen, which is not the order it usually gets quoted.

Turning the basement into a separate apartment? Then the rules are different: the building code does not allow a legal secondary suite to share ductwork with the main house at all, and the trunk line has to clear 1.85 m. Our guide to ductwork and ventilation for a secondary suite covers that case.

Start with the furnace, not the basement

The first question is capacity, and it has two halves that get confused with each other.

Heat output is the part people assume is free, and it is worth correcting that assumption before anything else, because it is the single most common thing homeowners get wrong about basements.

The intuition is that a basement is surrounded by earth, so it must be naturally warm and cheap to heat. Natural Resources Canada puts that one down directly: basements account for about 25% of a typical home's total heat loss, and — in their words — "contrary to popular opinion, earth is a poor insulator." The loss comes from the large surface area both above and below grade, plus air leakage at the windows, the sill and the rim joist.

So a basement's heat load is not small because it is underground. It is small or large depending on whether it is insulated — which means the insulation decision comes before the heating decision, not after it. Finish and insulate the space properly and the load is usually modest enough that an existing system can cover it. Put ducts into an uninsulated basement and you are heating the ground.

Air-moving capacity is the one that bites. Your ductwork was sized for the rooms that existed when it went in. A postwar Halifax house with a trunk sized for an oil furnace and a handful of branches is often already at its practical limit before anyone adds a thing. Tap three new supply runs into that trunk and the air does not arrive from nowhere — it comes out of the bedrooms.

This is the same mechanism behind rooms that stay cold after a heat pump install: the system changed, the ductwork did not, and the symptom showed up in whichever room was already weakest. Adding basement supply to a maxed-out trunk produces the identical result, just on purpose.

What a competent assessment looks at: the size of the existing trunk, how many branches already come off it, the static pressure the system is running at now, and how much margin is genuinely left. That is a measurement, not an opinion, and it takes one visit.

Worth knowing that this is not a matter of taste: in Canada, the required capacity of residential heating and cooling equipment is determined by calculation to CSA F280, the national standard covering housing under Part 9 of the National Building Code. It exists precisely because guessing at capacity goes wrong in both directions — the standard's own framing is that too little or too much capacity creates an uncomfortable and potentially unsafe result. Adding conditioned floor area to a house is exactly the moment that calculation is supposed to be revisited.

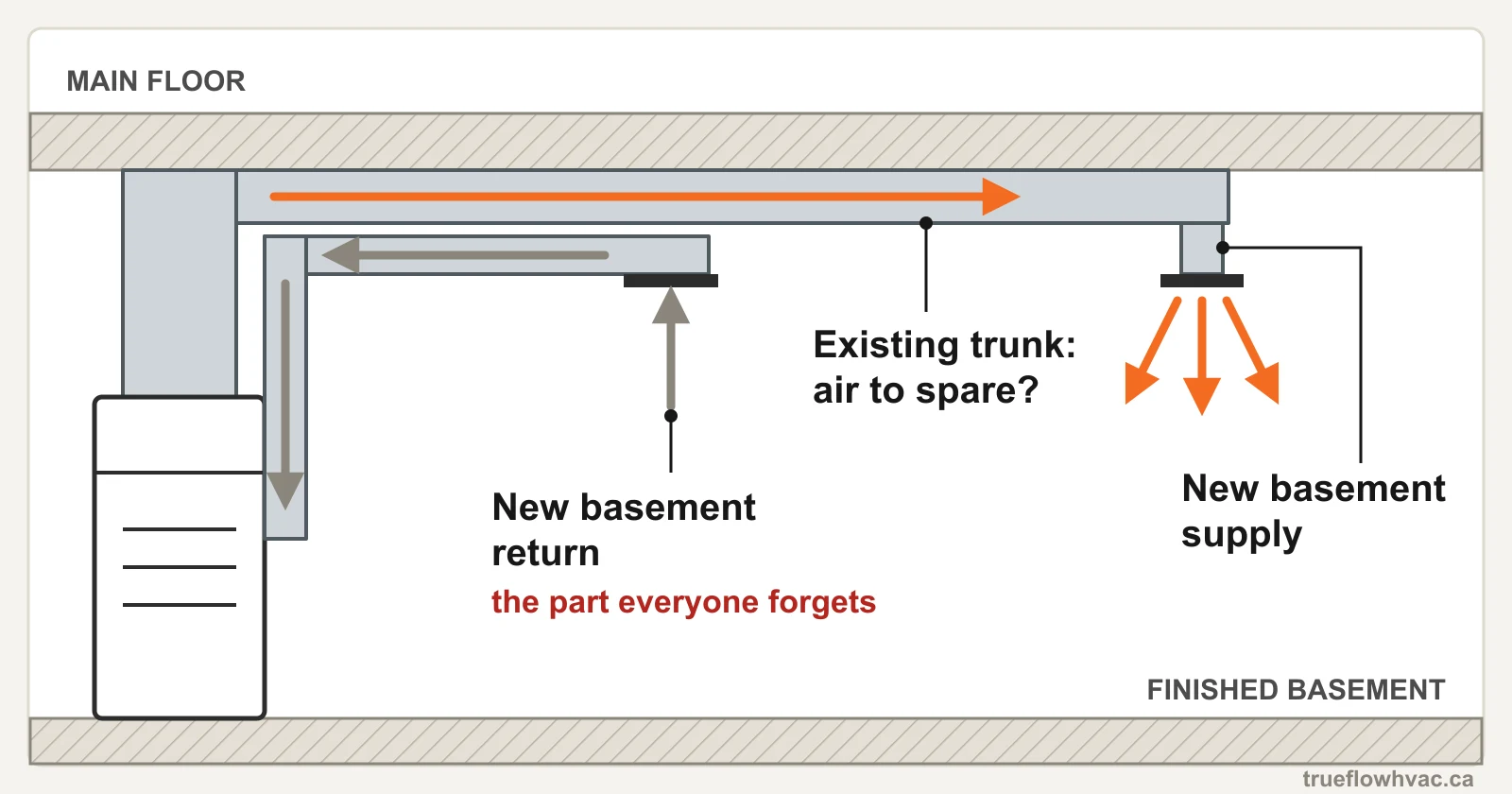

The part everyone forgets: return air

If there is one thing to take from this page, it is this. Basements get supply and no return, and that is the single most common mistake in the job.

Air is a loop. Every cubic foot you push into the basement has to get back to the furnace, and if there is no return path down there it will find one — under the door, up the stairwell, through gaps in the framing. That produces exactly the complaints people describe afterward: the basement is stuffy, the stairwell is a wind tunnel, the door swings on its own, and the room never quite feels right no matter what the thermostat says.

It also pressurises the basement slightly against the rest of the house, which in a Nova Scotia basement is worth thinking about, because the air being drawn in to compensate has to come from somewhere — often the rim joist, the crawlspace or the slab edge, which is not air you want.

A basement supply run without a basement return is half a job. Older Halifax homes are chronically short on return air to begin with — it is the first item in our list of common ductwork problems in older homes — and a basement build-out is one of the few moments when adding return is genuinely easy, because the ceiling is open and the furnace is right there. Doing it later means opening things up again.

Running duct through a ceiling that is already finished

Assuming capacity is there, the routing question is mostly about what is above your head.

• Drop ceiling. The best case by a distance. Tiles lift out, the work happens in open space, tiles go back. No patching, no painting, and everything stays accessible for the next time.
• Drywall ceiling. Workable, but the ductwork stops being the main cost. Cutting access, patching, taping and repainting is often the larger share of the bill, which is why the same run costs wildly different amounts in two basements.
• Open joist bays, before the ceiling goes on. The ideal moment. If your basement is still framed and open, this is the cheapest this job will ever be — by a wide margin.
• Soffits and bulkheads. Frequently the smart answer, and underused. Running duct along a wall inside a boxed soffit avoids threading through joists entirely, and if you were already planning a bulkhead to hide a beam or plumbing, the duct can share it. Tidier, cheaper, and fully accessible later.

Where a run has to cross joists, get through a beam pocket, or fit a depth that stock fittings do not offer, that is where custom-fabricated transitions earn their cost — a properly made piece keeps the airflow that a squashed generic fitting throws away.

One thing worth insisting on regardless of route: rigid metal over long runs of flex. Flexible duct sags between supports, and every sag is a restriction. In a basement ceiling where nobody will ever look again, sagging flex is the failure you will never find and never stop paying for.

Insulation: it depends on cooling, not heating

Short version: duct in a heated basement usually does not need insulating for heat loss. Whatever heat it sheds lands in a room you are heating anyway. This is where a lot of generic advice goes wrong by treating basement duct like attic duct.

Two situations change the answer.

The run passes through somewhere unheated. Natural Resources Canada's guidance is specific and, usefully, uses our units: heating ducts running through "unheated or cool basements and crawl spaces" should be insulated to RSI 2.1 (R-12) or more. Note the wording — unheated or cool. Heat shed into an unheated space is lost for good, so a crawlspace, an attached garage or a cold cantilever gets wrapped. A heated basement you have just finished does not, at least not for that reason.

A safety note that only applies to some older Halifax homes: NRCan warns not to seal or wrap ducts within 1.8 m (6 ft.) of a wood-fired furnace unless you use approved non-combustible tape, mastic or insulation. If there is a wood furnace or add-on wood appliance in your basement, that clearance is not optional.

Your system also cools. This is the one that matters in Nova Scotia, and it is increasingly common as ducted heat pumps replace oil furnaces. Bare metal carrying cold air through a humid basement in July will sweat, and that condensation drips onto the ceiling, the framing, or the storage underneath. Here the insulation is doing a moisture job, not an efficiency job. NRCan makes the same point about the foundation itself — condensation forms on cool foundation walls in summer when the air is very humid — and a cold duct in that same basement is simply another cool surface for it to form on.

And one thing to settle before any of this: moisture. NRCan is blunt that you should not insulate a basement from the inside if it has moisture problems — leaks, dampness, efflorescence, blistering paint — because insulating makes the foundation wall colder still and the finishes then hide the problem while it develops. That is a basement-finishing question rather than a ductwork one, but it comes first, and it is worth hearing from whoever is putting ducts in your ceiling rather than discovering it later.

Seal it while the ceiling is open — but for the right reason

NRCan's instruction is to seal all plenums and supply and return ducts, using aluminum foil duct tape, approved flexible plastic tape, or water-based mastic — and explicitly not standard vinyl duct tape, because "the adhesive dries out over time and the tape falls off."

Now the part where being in Canada changes the argument. You will read that duct leakage wastes 20–30% of the air a system moves. That is a US Department of Energy figure, and it is real — but it is weighted by US housing stock, where ducts commonly run through vented attics and crawlspaces, outside the heated envelope. Air that leaks out there is gone.

In a Halifax basement the ducts are usually inside the heated space. Air that leaks out of them still ends up in the house. So the honest case for sealing a basement duct is not primarily the heat-loss number — it is comfort and balance: leaks bleed off pressure before the air reaches the room it was meant for, and NRCan names leaky ductwork as a reason balancing attempts fail outright. That is a real problem and worth fixing. It just is not the same problem as an attic duct in Texas, and we would rather say so than quote you an American percentage.

Where the US figure does transfer directly is any run passing through a crawlspace, an attached garage or a cold cantilever. That air is genuinely lost, exactly as the DOE describes.

Either way, leaks in a basement ceiling are easy to reach now and impossible to reach later — which is the whole argument for sealing ducts while the ceiling is open rather than after it closes.

Balancing with dampers is fine. Choking registers is not the same thing.

This one comes up every time, and the honest answer is more precise than the internet's version. Adjusting dampers to balance a system is legitimate — closing registers to force air somewhere is the crude substitute for it, and past a point it backfires.

Natural Resources Canada is explicit that balancing is a real technique and worth doing seasonally: partially closing dampers on the lower floors while leaving the upper floors open is exactly how you rebalance a system between the heating and cooling seasons. Two things in their guidance matter for a basement job:

• Dampers beat registers. NRCan's own wording is that individual registers "can also be adjusted but they are less effective than controlling the air in the ducts." A damper in the trunk moves air deliberately; a closed register mostly just adds resistance at the end of a run.
• If balancing does not work, suspect leaks. NRCan names the failure mode directly: if your attempts to balance are ineffective, it may be because the ductwork is too leaky, and "closing the dampers may just cause more leakage rather than sending the air to the intended room."

That last point is the one that has actually been measured. Lawrence Berkeley National Laboratory tested register closing in the lab and in modelling and found it increased energy use, because closing registers raises duct pressure and higher pressure pushes more air out through every leak — the same mechanism NRCan describes. Their report's conclusion is that closing registers is not a viable energy-saving strategy, and it adds a hard limit worth knowing: closing more than about 60% of registers is explicitly not recommended, because the added flow resistance restricts airflow enough to raise safety concerns — the report names furnaces tripping the high-limit switch and cooling coils freezing.

Read that US study with its scope attached, though, because this is Canada. It modelled California houses with ducts running outside the conditioned space — vented attics and crawlspaces, which is normal construction there. In a Halifax house the ducts are usually in the basement, inside the heated envelope, so air that leaks out of them still ends up in the house. The energy penalty it measured is therefore weaker here than the headline suggests. What carries over regardless of country is the physics of restriction: the airflow drop and the equipment-safety limit are not climate-dependent.

So: balance the system properly, with dampers, and expect to adjust them between seasons. But if the basement is genuinely short of air, no amount of closing things upstairs creates more — that needs capacity and return.

When extending the ducts is the wrong answer

Worth saying, because it is the honest version and it does not always favour us.

If the assessment shows the existing air side genuinely has nothing left — an undersized trunk, no practical route for return, a system already running at high static pressure — then rebuilding the ductwork to serve a basement can cost more than the basement is worth. In that case a separate heat source for the basement may be the better buy, and you should hear that comparison laid out rather than have it decided by whoever wants the bigger job.

There is also the middle path for homes where conventional duct genuinely will not fit: small-duct high-velocity systems exist precisely for houses where running standard trunk and branch is impractical, and they come up often in older Halifax stock.

Where a separate heat pump head is the right answer, that is refrigerant work, which is a licensed compulsory trade in Nova Scotia — it goes to our licensed partner, not to us. The air side is ours; we will tell you plainly when the air side is not the answer.

What a walkthrough actually determines

For a basement job specifically, the things that have to be seen rather than guessed:

• The trunk — its size, and how many branches are already on it.
• Static pressure as the system runs today, which tells you what margin exists.
• The return side — what exists, what is missing, and where a basement return can realistically go.
• The route — joist direction, beams, plumbing and wiring already in the way, and whether a soffit beats a ceiling penetration.
• Ceiling type, because that is the real cost driver and it is a two-second observation.
• Whether the system cools, which decides the insulation question.

That is a visit, not a phone estimate. Anyone willing to price a basement duct job without seeing the trunk and the ceiling is pricing a guess — and the guess is usually low, which is not the favour it appears to be.

For what the market broadly charges and why published figures and real quotes diverge so much, our guide to ductwork cost and lifespan in Halifax sets out the ranges and the reasoning.

Where we fit in

Ductwork is our trade rather than a sideline to selling equipment, and basements are one of the jobs where that difference shows up quickly. We assess whether your system can carry the extra load, design the supply and the return together rather than the supply alone, fabricate the transitions the route actually needs, and seal it properly while the ceiling is still open.

We will also tell you when the answer is no. If the air side cannot carry a basement without a rebuild that costs more than it is worth, that is worth knowing before the drywall goes up rather than after — and it is the kind of thing you only find out by having someone look who does not need the answer to be yes.

If you are planning a basement in Halifax HRM, get in touch while the ceiling is still open. It is the cheapest this job will ever be, and it is the only moment when the return air is easy.

Sources

This page makes no cost claims of its own — figures live in our ductwork cost guide, where each is labelled with its currency and origin. Technical claims are sourced below. Every URL was opened and read rather than taken from another article about it. Last verified September 7, 2026.

A note on nationality, because it changes the answers. Most HVAC advice online is American, and the difference is not just dollars — it is where the ducts are. US housing commonly runs ductwork through vented attics and crawlspaces, outside the heated envelope. Halifax housing overwhelmingly runs it through the basement, inside the envelope. That single difference flips how much duct leakage costs you, what insulation is for, and which "energy saving tips" apply at all. We lead with Canadian sources and flag every US one with what does and does not transfer.

Canadian sources

• Natural Resources Canada — Keeping the Heat In, Section 6: Basement insulation. Source of the ~25% of total home heat loss figure for basements, the statement that "contrary to popular opinion, earth is a poor insulator," the summer condensation point about cool foundation walls, and the warning against insulating a damp basement from the inside.
• Natural Resources Canada — Keeping the Heat In, Section 9: Operating your house. Source of the duct-sealing materials guidance (aluminum foil tape, approved flexible plastic tape or water-based mastic — not standard vinyl duct tape, whose "adhesive dries out over time"), the RSI 2.1 (R-12) insulation spec for ducts in "unheated or cool basements and crawl spaces," the 1.8 m (6 ft.) clearance from a wood-fired furnace, the seasonal damper-balancing method, the point that registers are less effective than dampers in the duct, and the observation that failed balancing often means the ductwork is too leaky.
• CSA Group — CSA F280:12 (R2025), Determining the required capacity of residential space heating and cooling appliances. The Canadian standard for sizing residential heating and cooling equipment, applying to housing under Part 9 of the National Building Code of Canada. Cited from the publisher's own description; the standard itself is a paid document, which we say rather than implying we quote its text.

US sources, and how far they travel

• Lawrence Berkeley National Laboratory — Iain S. Walker, Register Closing Effects on Forced Air Heating System Performance (2003), report LBNL-54005, DOI 10.2172/822806, hosted by the US Department of Energy's Office of Scientific and Technical Information. Source of the finding that closing registers increases energy use, that the mechanism is increased duct leakage under higher duct pressure, that closing registers nearest the air handler does the most harm, and the ~60% threshold above which restriction becomes a safety concern (high-limit tripping, frozen coils). What does not transfer: it modelled California houses with ducts outside conditioned space, so its energy penalty overstates the case for a Halifax basement where ducts sit inside the heated envelope. What does transfer: the physics of restriction — the airflow drop and the safety limit are not climate-dependent. NRCan describes the same leakage mechanism independently, which is why we lead with them.
• US Department of Energy / ENERGY STAR — the widely quoted 20–30% duct-leakage figure (ENERGY STAR's version). We reference it in the text but deliberately do not build the basement argument on it, because it is weighted by US housing stock with ducts in unconditioned attics and crawlspaces. It applies directly to any Halifax run passing through a crawlspace, attached garage or cold cantilever; it overstates the heat-loss case for duct inside a heated basement, where the leaked air stays in the house. Our duct sealing guide carries the figure with its DOE attribution.

What we could not source

The "two-foot rule." We say there is no single such rule in code, and that is a statement about what we could not find rather than a sourced claim — the phrase is trade shorthand used loosely for several different things. We give the reasoning behind the common version and point at what governs instead. If you have been told a specific code clause requires it, ask which one.

Corrections made to this page

Recorded here because the site's position is honesty about its own numbers.

1. 2026-09-07 — the heat-load claim. This guide originally said a basement is wrapped in earth at a stable temperature and therefore has a low heat load. NRCan says the opposite and we now say so.
2. 2026-09-07 — the closed-register mechanism. Originally attributed to the blower working harder; the LBNL work shows the dominant mechanism is duct leakage driven by higher duct pressure.
3. 2026-09-07 — "never close vents" was too absolute. NRCan actively recommends damper balancing, including seasonally. The section now distinguishes balancing properly with dampers (legitimate) from choking registers (the crude version, and harmful past a point), and the US leakage figure is now presented with the Canadian caveat rather than as a headline.
