Ductwork Sizing for Ducted Heat Pumps

A ducted heat pump is only as good as the ductwork behind it. You can buy the most efficient unit on the market, have it installed flawlessly, and still end up with cold rooms, high bills, and a system that runs loud — if the ducts can't move the air the equipment needs. Sizing is the quiet factor that decides whether a heat pump delivers what it promised on paper.

This one gets a little technical, but the ideas are simple, and understanding them will make you a much sharper buyer.

Why sizing matters more for a heat pump than a furnace

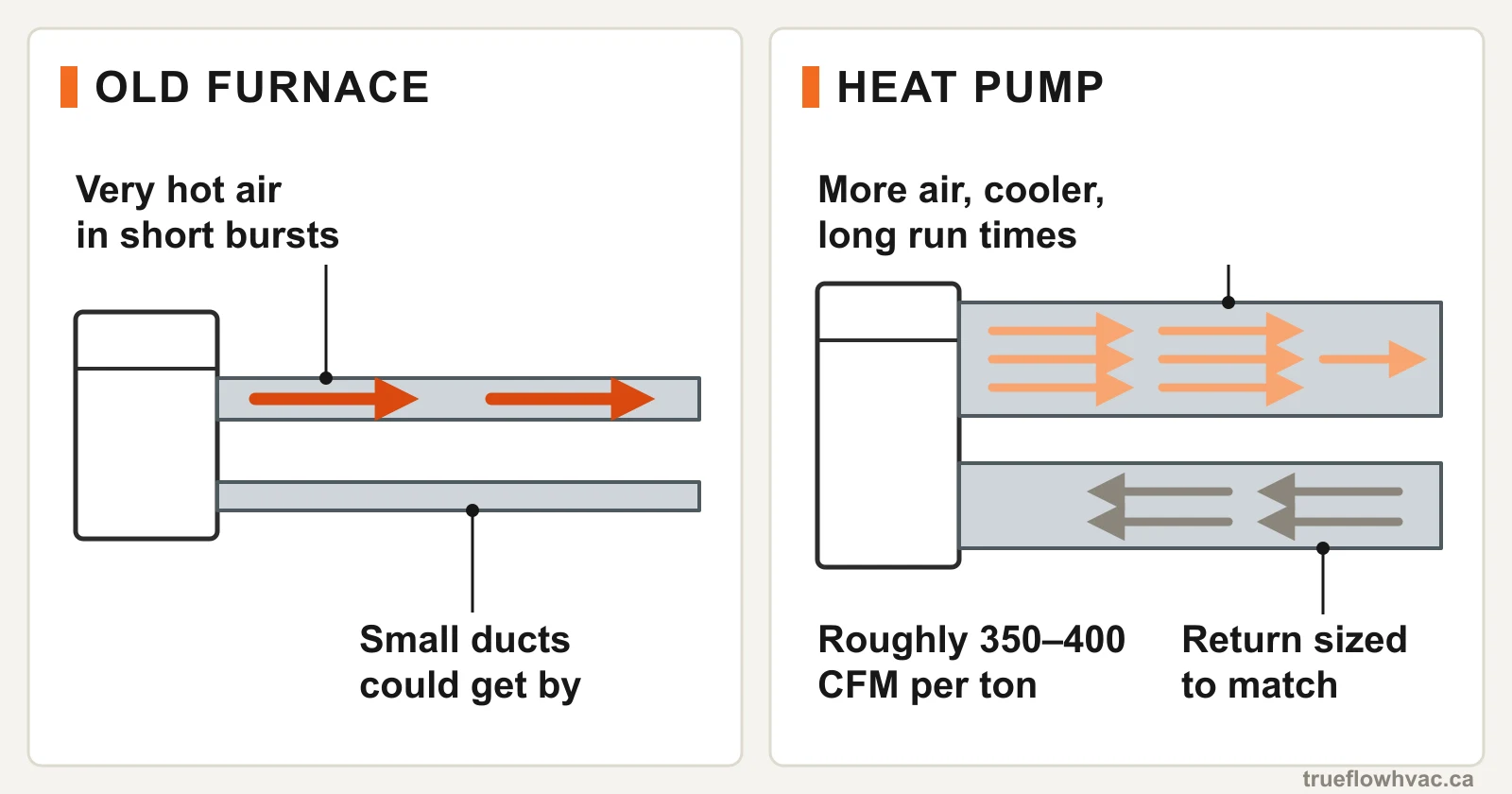

An old furnace produced very hot air in short bursts. Even if the ducts were marginal, it could brute-force a room with sheer temperature. A heat pump works differently: it moves a larger volume of cooler air over longer, gentler run times. That's more efficient and more comfortable — but it leans entirely on the ductwork's ability to move air. Take away the airflow and you take away the performance.

That's the shift. A furnace forgave undersized ducts by running hotter. A heat pump can't. It needs the air, or it simply can't deliver its rated heating and cooling.

The two numbers that decide everything

Duct sizing comes down to two things:

• Airflow (CFM) — how much air the system needs to move, measured in cubic feet per minute. A heat pump needs roughly 350–400 CFM per ton of capacity. A three-ton system needs somewhere around 1,050–1,200 CFM, continuously, to every corner of the house.
• Static pressure — the resistance the ductwork puts up against the blower. Think of it as blood pressure for your duct system. Undersized ducts, tight elbows, long runs, kinked flex, and dirty filters all push it up.

Here's the relationship that matters: the blower is designed to deliver its rated airflow only up to a certain static pressure. Push the pressure past that — with ducts that are too small or too restrictive — and the airflow drops below what the equipment needs. The unit is fine. The house just never gets the air.

"It fit the furnace" doesn't mean "it fits the heat pump"

This is the trap in a lot of Halifax retrofits. The ductwork's already there, it worked with the old furnace, so the assumption is it'll work with the heat pump. Sometimes it does. Often it doesn't — because the heat pump may move more air than the furnace did, and because the old ducts were frequently marginal to begin with. Dropping higher airflow demand onto undersized ducts is how a brand-new system ends up underperforming from day one.

The only way to know is to actually check what the ducts can carry against what the new equipment needs — before the equipment is ordered, not after it's running.

Returns are half the equation — and usually the weak half

Everyone thinks about the supply side: the registers blowing warm air. Almost nobody thinks about the return side until it's a problem. But every cubic foot the blower pushes out has to come back to be reheated and pushed out again. If the return path is undersized — too few grilles, grilles too small, restrictive filter slots — the entire system is choked, no matter how generous the supply ducts are.

Older homes are chronically short on return air, so when we size ductwork for a heat pump, returns are usually where the real gains are: adding grilles, upsizing the return trunk, and giving upper floors a path back to the system.

How duct sizing is actually done

Done properly, it's not guesswork. It starts with a heat-loss and heat-gain calculation for the house (the industry calls it a Manual J load calc) to establish how much heating and cooling each room actually needs. From there, the equipment is matched to that load, and the ductwork is designed to deliver the required airflow to each room at a static pressure the blower can handle (Manual D). In plain terms: figure out what each room needs, then build a duct system that can actually deliver it.

You don't need to run the numbers yourself. But you should expect your installer — or the sheet-metal sub doing the ductwork — to be sizing to the load and the equipment, not just reusing whatever's there and hoping.

Signs your ducts are undersized for the new unit

You can spot the symptoms without a manometer:

• The system runs loud — a rushing or whistling at the registers or returns is high static pressure talking.
• Far rooms never keep up while rooms near the unit are fine.
• The unit short-cycles or the airflow feels weak even on high fan.
• Bills came down less than you were promised after the switch.

Any of these on a newer system is worth investigating before you accept it as "just how it is."

Where we fit in

We do the air side: assessing what your ducts can carry, fabricating and resizing the trunk and branch runs, and building out the returns so a ducted heat pump can actually hit the numbers it was sold on. The refrigerant and commissioning go to our licensed heat-pump partners; the ductwork that decides whether the whole thing performs is our trade. If you're planning a ducted system, get the ducts sized before you buy the box — it's far cheaper to build it right than to chase comfort problems afterward.
